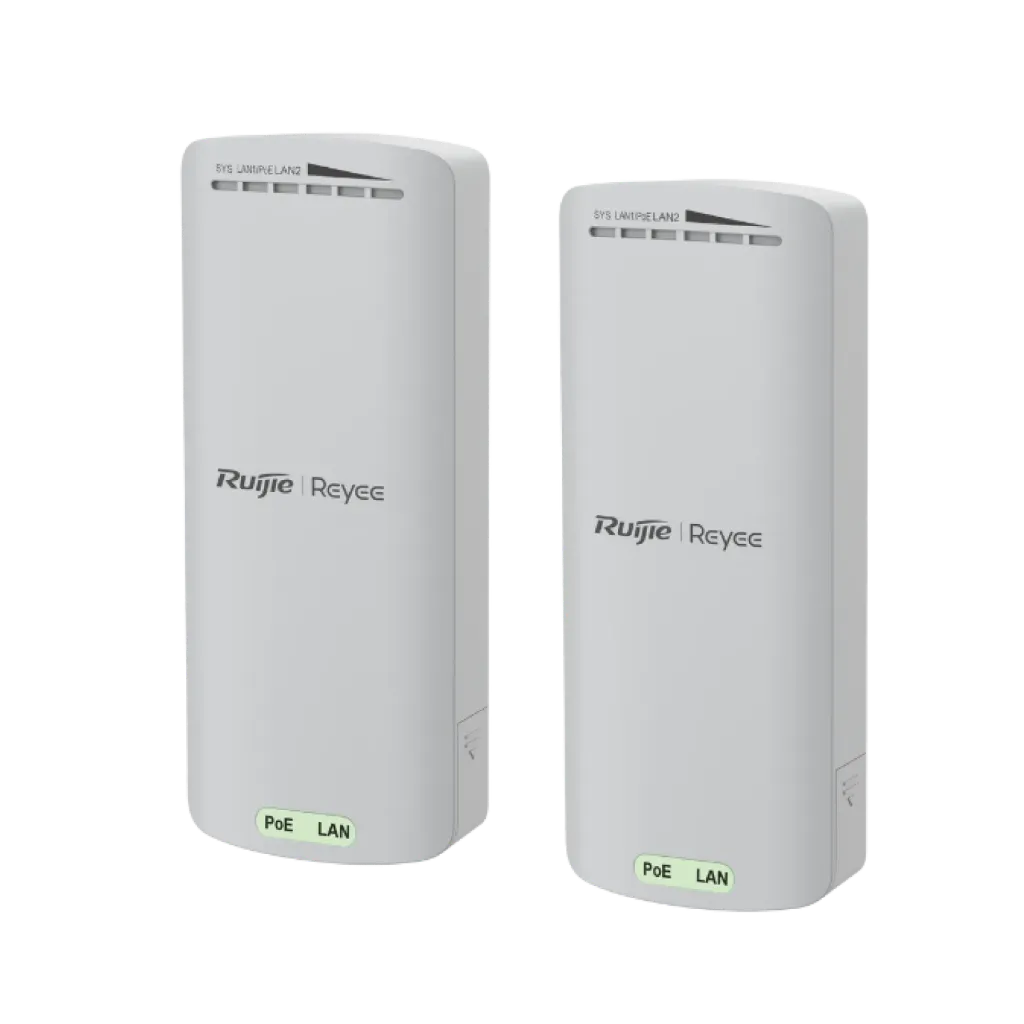

RUIJIE EST100 | 2.4GHZ DUAL-STREAM 500M WIRELESS BRIDGE (PAIR)

Radio Architecture & Performance: Operates on a 2.4 GHz single-band dual-stream (2x2 MIMO) architecture supporting IEEE 802.11b/g/n protocols with wireless data rates up to 300 Mbps.

Transmission Range: Engineered for short-distance Point-to-Point (PTP) surveillance backhaul with a recommended bridging distance of up to 500 meters.

Antenna & Directivity: Features built-in 8 dBi directional antennas offering a wide signal coverage beamwidth of 70° horizontal and 70° vertical.

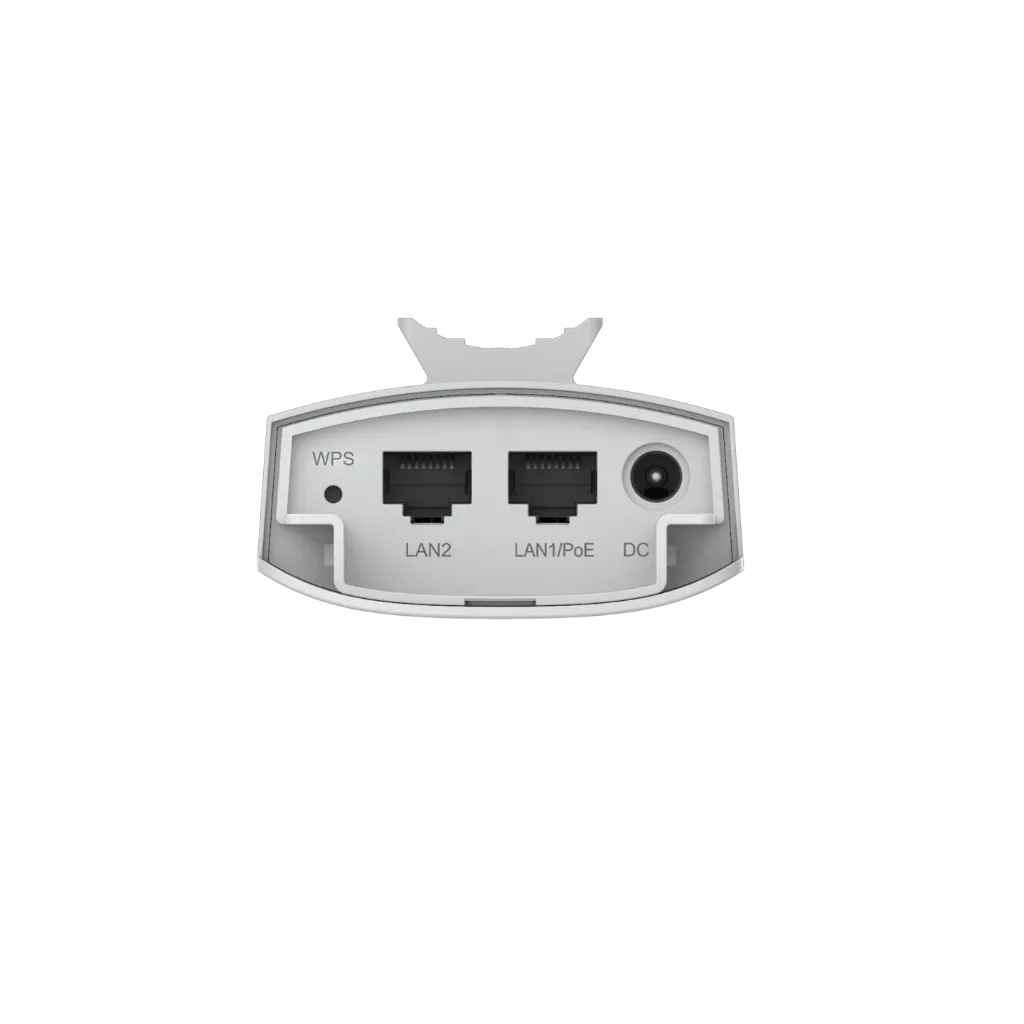

Interface Configuration: Equipped with 2 Fast Ethernet (10/100Base-T) ports, with Port 1 supporting 12V Passive PoE input.

Weatherproofing & Durability: Built with an IP55 weatherproof enclosure and rust-proof design, ensuring reliable operation in harsh outdoor or elevator environments ranging from -30°C to 60°C.

Cloud Management: Fully supports centralized monitoring, statistics tracking, and remote maintenance via the Ruijie Cloud platform.
